Modern day electrical devices are constantly pushing the limits of insulation materials. Besides the conventional factors such as voltage stress and temperature rise, the materials must even show resilience over long periods of continuous operation without deterioration in performance.
Electrical equipments ranging from heavy-duty industrial motors, generators and transformers to electric vehicles highly rely on good quality insulation materials for their safe operation and longevity. It becomes the matter of choice when industries seek a versatile insulation solution which is basically aramid insulation paper at present.
Being one of the key players among Aramid Insulation Paper Manufacturers, the industry is always pooling its resources to innovate and roll out new insulation materials with better dielectric strength, enhanced heat resistance and overall capability of ensuring equipment reliability over prolonged use. What’s more, the best Electrical Insulation Materials Manufacturers account for insulation as more than just a protective coat – they see it as an essential factor which can significantly affect the electrical efficiency of a system and its safe operation.
This write-up looks at how aramid paper is the key in raising dielectric strength of electrical equipment, what are its main advantages and fields of use, and the reasons behind industry’s escalating preference for top-notch aramid insulation components.
Dielectric Strength of Electrical Equipment Explained
Dielectric strength is the highest voltage that an insulating material can resist without breakdown. Put simply, it is an indicator of the effectiveness of preventing current flow leakage between two conductors through the material.
Dielectric strength in electrical installations must be kept as high as possible because it:
- Acts as a barrier to short circuits happening
- Decreases chances of equipment going faulty
- Makes environment safer to operate
- Prolongs equipment life
- Ensures steady electrical performance
Failure of insulation due to electrical stress may cause it to overheat leading to the equipment being shut down or even resulting in severe electrical accidents. For these reasons, high-quality insulation products from certain Electrical Insulation Materials Manufacturers are trusted that ensure its reliability in a long run.
What Exactly Is Aramid Insulation Paper?
Mentioning aramid insulation paper (aramid fiber paper) means talking about a top-notch synthetic electrically insulating material largely made out of aramid fibers. Mechanically strong, thermally stable, dielectrically sound – these are some of the features that make aramid paper a leading choice in electrical & thermal insulation products worldwide.
When it comes to harsh operating environments, a well-engineered aramid paper is bound to outperform the traditional cellulose-based insulation by far. Typical end users are:
- Transformers
- Electric motors
- Generators
- Dry-type transformers
- EV batteries and motors
- Industrial electrical equipment
Only a professional Aramid Insulation Paper Manufacturer has the technical know-how to transform these fibers into materials capable of being regularly subjected to the high temperatures and voltage stresses encountered in the field yet will not lose the properties that emanate from the primary function of insulation.
Aramid Paper Contribution to Dielectric Strength Enhancement
1. Magnificent Electrical Insulation Attributes
The fundamental reason why aramid paper finds wide application in electrical systems lies in its excellent dielectric strength which enables it to endure very high voltages and yet resist the electrical breakdown such that no harm is done to the conductor and the breakdown voltage is evidenced and the material returns to insulation state once the electrical stress is removed.
By means of this characteristic, it is possible:
- To stop currents from leaking
- Make insulation work more reliably
- Keep voltage level at set value
- Lower chances of short circuits
In the aspect of enduring electrical stress on a continuous basis, aramid paper’s performance level is second to none if compared with traditional insulation substances.
To make sure aramid insulation papers comply with the top international dielectric performance standards, one goes to the supply chain of a dependable Electrical Insulation Materials Manufacturer.
2. Retain Properties When Heated
Failure of insulating networks due to overheating is a leading cause of electrical failures among industries. Heat also causes materials to lose their dielectric strength.
With thermal properties of aramid being remarkable, in fact far from those of common papers its working temperature can go beyond 220°C, in certain cases even higher, under almost no performance degradation. For this reason, it is recognized as an excellent material for electrical systems operating at elevated temperatures.
Possible benefits of heat resistance may be:
- Less insulation degradation
- More robust equipment
- Dielectric properties do not vary much at high temperatures
- Better safety during overload
A specially tailored manufacturing method is the key to production of aramid paper capable of holding up its insulating properties even when exposed to severe thermal stress as a specialist Aramid Insulation Paper Manufacturer confirms.
3. Resistive to Water and Chemical Substances
Presence of moisture in electrical installations will lead to drastic reduction of dielectric strength. Many traditional insulation materials usually suffer from moisture absorption which result in breakdown of insulation and electrical faults.
Aramid insulation paper shows first-rate resistance to:
- Water
- Oils
- Solvents
- Industrial chemicals
This gives a big help towards keeping the dielectric properties at a constant level even if the industrial atmospheric conditions are harsh.
A dependable Electrical Insulation Materials Manufacturer is the one who offers insulation solutions capable of functioning consistently over demanding working conditions.
4. Performance During Aging
Manufacturing electrical equipment that lasts for decades is no small challenge. Besides the high initial investment, one also has to consider the long-term costs that arise from the maintenance of the parts that go wrong due to deterioration.
Aging experiments have shown that among other materials, aramid paper exhibits the most excellent resistance to the changes that ageing causes due to its stable molecular structure. It keeps its dielectric strength for many years of operation even under thermo-electrical stresses.
Some of the benefits are
- Longer working life spans
- Less maintenance efforts
- Lower incidents of downtime
- Greater returns on investments
It is for this quality of long-lastingness that aramid paper is considered as one of the best insulation materials in various industrial fields and sectors.

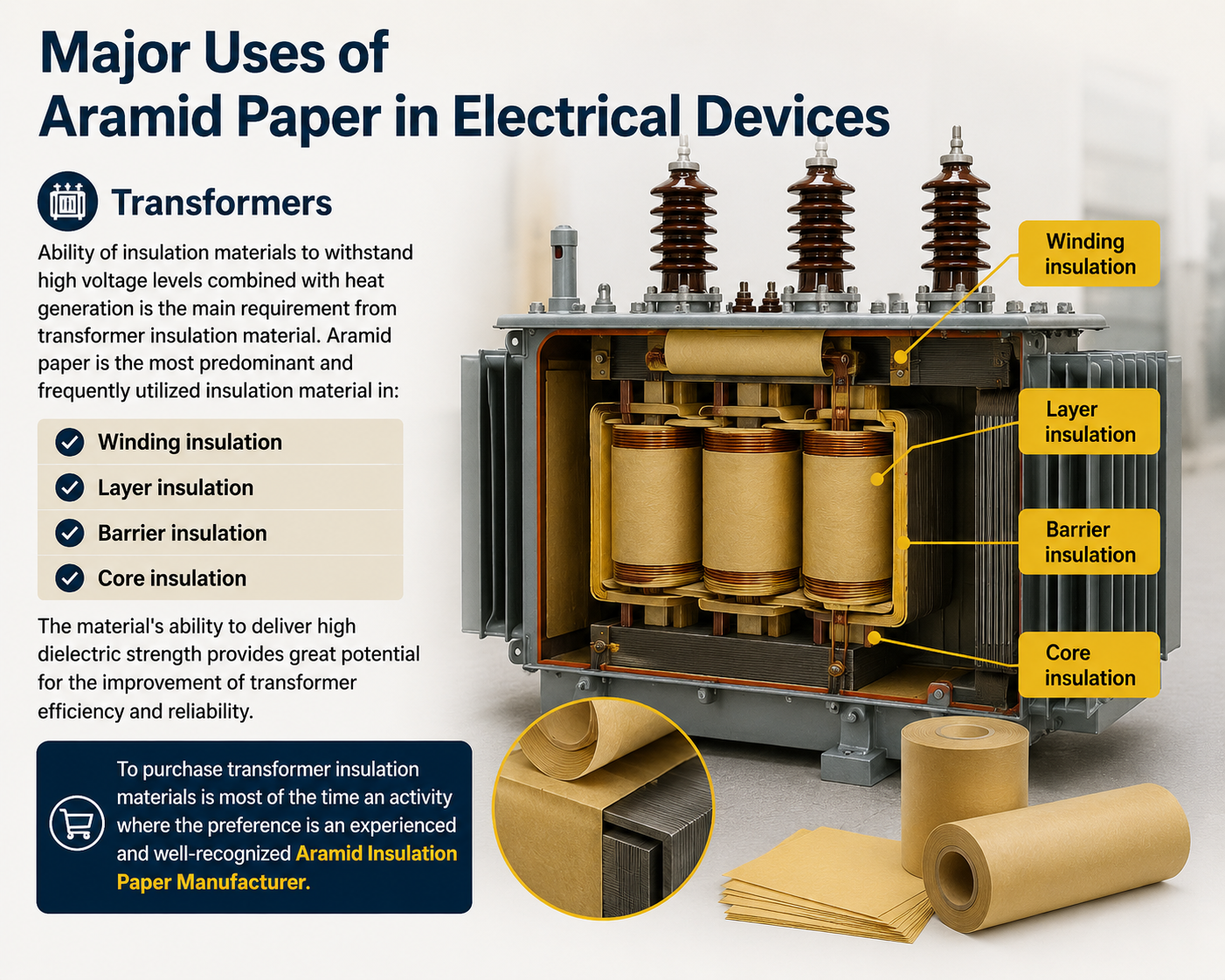

Major Uses of Aramid Paper in Electrical Devices
Transformers
Ability of insulation materials to withstand high voltage levels combined with heat generation is the main requirement from transformer insulation material. Aramid paper is the most predominant and frequently utilized insulation material in:
- Winding insulation
- Layer insulation
- Barrier insulation
- Core insulation
The material’s ability to deliver high dielectric strength provides great potential for the improvement of transformer efficiency and reliability.
To purchase transformer insulation materials is most of the time an activity where the preference is an experienced and well-recognized Aramid Insulation Paper Manufacturer.
Electric Motors
Motors experience both heating and electrical stressing i.e. voltage and current cycles. Such conditions over time can severely damage the motor if no protective measures are taken. Aramid paper is luckily there to make sure that the winding is protected so the insulation is able to last longer.
Some of its uses in this case are:
- Slot liners
- Phase insulation
- Coil wrapping
- Ground insulation
Reliance on high-performance materials for insulation results in reduced failures as well as improved efficiency of the motors during their working cycles.
Generators
Extensive loading of generators even beyond rated conditions is quite the norm and so ensuring dielectric strength becomes akin to the generator’s life line.
Use of aramid insulation paper majorly helps the:
- prevent electrical breakdown
- increase thermal endurance
- valuable extension of generator lifespan
- enhancement of overall reliability of generator operation
Making one’s way to a trusted Electrical Insulation Materials Manufacturer is where one is guaranteed of getting cutting-edge insulation systems for industrial generators and power plants.
Dry-Type Transformers
In view of the fact that dry-type transformers do not use oil to provide cooling and insulation, they are heavily dependent on insulation materials.
Aramid paper provides excellent support to these types of systems as it is capable of:
- High heat resistance
- Excellent dielectric properties
- Fire resistance
- Low maintenance requirements
Based on the above, such transformers are being found more and more in commercial buildings, renewable energy installations, and even in industrial sectors.
Electric Vehicles (EVs)
Because of the increased focus on electric vehicles, the market for advanced insulation materials is expanding immensely.
Aramid paper makes a significant impact in the following areas in an electric vehicle:
- Battery insulation
- Motor insulation
- Protection of power electronics
- Thermal barriers
The fact that this insulator is both lightweight and able to withstand thermal shock is highly commendable. These properties are helping the EV sector become safer and more efficient.
Innovative and forward-looking Aramid Insulation Paper Manufacturer are working on developing specific insulation materials for electric vehicle technologies.
Aramid Insulation Paper Benefits versus Conventional Materials
Ability to Handle High Temperature
The fact that traditional cellulose paper starts to break down at quite low temperatures whereas aramid paper can be used even at very high temperatures makes it a more suitable choice.
Enhanced Dielectric Dependability
Aramid paper is far better at sustaining insulation during high voltage stress than a lot of other materials.
Greater Mechanical Strength
It is highly resistant to tearing and its shape does not change easily thanks to a strong fibrous structure of aramid paper.
Better Fire Safety
Since aramid insulation materials are by their very nature fire-resistant, safety of the equipments is improved.
Extended Longevity of Equipments
The robustness of aramid paper is directly responsible for less maintenance work and longer operating life of equipments.
It is for these reasons that even a modern-day Electrical Insulation Materials Manufacturer will recommend aramid paper as a go-to solution.
Why Buying from the Right Aramid Insulation Paper Manufacturer Matters
The success of any project or the efficiency of a system heavily depends on materials used and their quality is no exception.
A trustworthy Aramid Insulation Paper Manufacturer:
- Ensures consistent quality of materials
- Possesses International standards and certificates
- Is capable of tailoring insulation to customers’ specifications
- Has possession of state-of-the-art manufacturing set-up
- Contributes valuable technical advisory services
Use of high-grade insulation materials plays an instrumental role in securing electrical systems safety and reliability.
Functions of Electrical Insulation Materials Manufacturers within Contemporary Industries
Today, many sectors are coming up with electrical insulation demands of very high standards such as:
- Renewable energy
- Electric vehicles
- Aerospace
- Industrial automation
- Railways
- Electronics manufacturing
The manufacturer at the forefront of Electrical Insulation Materials will have to be the most active in inventing those material which can contribute positively to electrical efficiency and operational safety.
Research and development efforts are focused on creating insulation solutions that:
- Have higher thermal classes
- Show improved dielectric performance
- Better resist environmental factors
- Feature lightweight construction
- Offer enhanced sustainability
These can be used by different industries for various applications where both performance and energy efficiency are paramount.
What Lies Ahead for Aramid Insulation Materials?
Compactness and power of electrical systems continue evolving so insulation materials must be able to rise to this challenge and offer even better performance.
Some expected trends in the field of aramid insulation are:
Continued Expansion of EV Market
Esteeming of electric vehicles as environment-friendly modes of transportation, coupled with governmental support, will drive the electricity consumption. Thus, there will be a greater demand for robust and lightweight insulation materials capable of withstanding the high temperatures generated in EVs.
Renewable Energy Systems
Wind turbines and solar power systems need insulation systems that are not only long lasting but also capable of withstanding the tough operating environments with which the renewable energy infrastructures normally associate.
Smart Grid Infrastructure
As the electrical networks are becoming smarter and more advanced, there is a need for good quality insulation materials that will work effectively in the high voltage conditions of such systems.
Sustainable Production
Manufacturer community has been turning a lot of attention towards environmentally friendly production methods and emphasis on recyclable insulation materials.
To meet these changing industry thrusts, a visionary Aramid Insulation Paper Manufacturer is constantly innovating and upgrading its product offerings.
Maintenance Advantages of Using Aramid Insulation Systems
Employing top-grade aramid insulation components can dramatically lower the frequency of maintenance at electrical plants.
Highlights of maintenance benefits are:
- Lower probability of insulation breaking down
- Decreased production of downtime
- Increased reliability of equipments
- Longer periods between inspections
- Reduced cost of replacements
For these reasons, aramid paper turns out to be a very cost-effective investment for establishments that want to run in an efficient manner over the long term.
Reasons For Industry’s Confidence In Aramid Paper For High-Voltage Uses
High voltage installations need insulation materials with outstanding dielectric characteristics. Aramid paper is one of the most highly relied upon solutions as it delivers:
- Consistent dielectric strength
- Wonders at withstanding heat
- Mechanical stability
- Resistance to chemical agents
- Working well over a long period of time
Given these physiological traits, one can say that aramid insulation paper is well suited for highly dependent electrical applications that require top-level safety.
Such materials must pass tests confirming their compliance with quality and safety standards. An experienced Electrical Insulation Materials Manufacturer is the one who keeps abreast with the standards and test requirements for such materials.
By providing superior dielectric strength, thermal resistance, and long-term reliability, aramid insulation paper has changed the face of electrical insulation technology.
Moving forward, aramid paper will continue to be one of the most trusted insulation solutions on the market as industries demand more efficient and safer electrical systems.
The role of aramid paper in achieving enhanced dielectric performance from not only transformers, generators but also electric vehicles and renewable energy systems is a fact that cannot be ignored. Implementation and partnership with a reliable Aramid Insulation Paper Manufacturer is the best way to achieving safer equipment, cost reduction in maintenance, and longer operational lifespan.
Equally, a skilled Electrical Insulation Materials Manufacturer is the one who can offer the needed expertise and premium materials to accompany the development of modern electrical infrastructure and high-performance industrial applications.
As innovation marches on, so will be the aramid insulation materials for creating safer, more power-efficient, and longer-lasting electrical systems across the globe.
